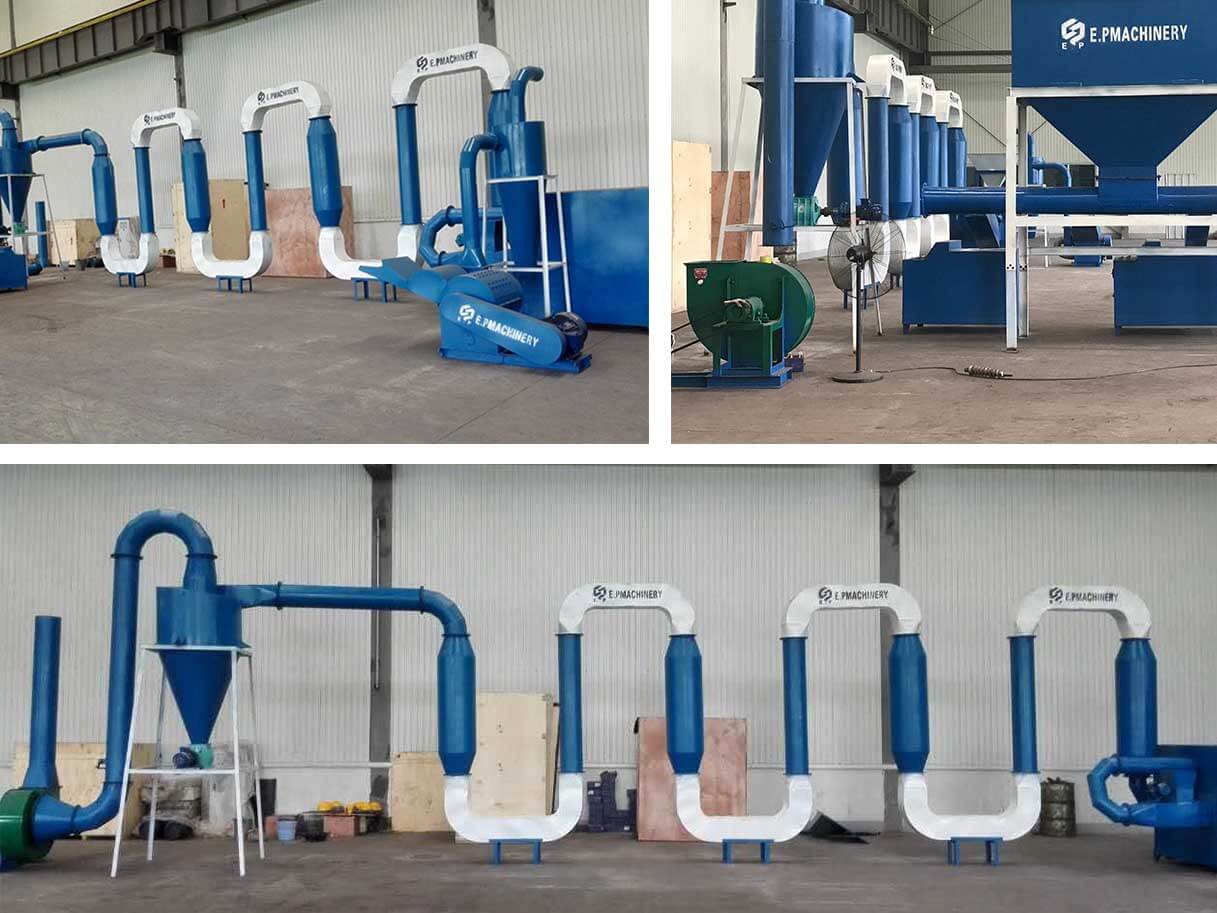

Hot air dryer

The hot air dryer is used for drying raw materials with size 3-5mm, such as wood sawdust, rice husk, etc. Commonly, it is one equipment of the pellets or briquettes production line. The whole system consists of air fan, electric motor, stove, steel pipes, cyclone and air lock. Compared with other types of dryer, the hot air dryer is the best drying equipment for drying sawdust, which is able to dry wet sawdust evenly and efficiently. Our hot air dryer has high quality and better performance, here are some main advantages as following.
1. The hot air dryer is equipped with a high-quality air fan, which has better performance and efficiency.
2. The pipes are made up of round shape and square shape alternately, it will be more efficient to scatter the wet lump, and dry evenly.
3. Reasonable and high-quality stove, providing with enough hot air.
The specifications as following.

Model	QTY of Stove	Power(kw)	Capacity(kg/h)	Packing size	Weight(kg)
HSHG-S01	Single	4	300-400	2.44*1.23*1.9	920/960
HSHG-S02	Single	7.5+1.5+0.75	500-700	Pipes: 2.45*1.75*1.91	1290/1360
				Stove: 1.45*1.42*1.41	820/920
HSHG-S03	Single	11+1.5+0.75	700-900	Pipes: 2.45*1.72*1.91	1290/1360
				Stove: 1.45*1.42*1.41	820/920
HSHG-T01	Double	7.5+1.5	400-500	Pipes: 2.44*1.23*1.9	1000/1100
				Stove: 1.4*1.3*1.4	400/500
HSHG-T02	Double	11+1.5+0.75	800-1000	Pipes: 2.45*1.72*1.91	1290/1360
				Stove: 1.23*1.24*1.73 1.42*1.42*1.41	740/800 820/920
HSHG-T03	Double	15+1.5+0.75	1000-1200	Pipes: 2.45*1.72*1.91	1290/1360
				Stove: 1.23*1.24*1.73 1.42*1.42*1.41	740/800 820/920
