500kg/h Charcoal Briquette Extruder Machine

Introduction

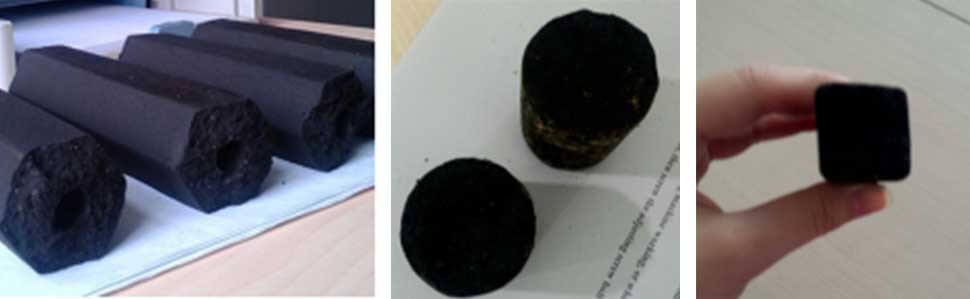

The charcoal briquette extruder is used to convert charcoal dust into charcoal bars with different shape and size cross-section. The finished coal/charcoal briquettes have good density and heating value. The machine performance is determined by the pressure(reducer) and screw angel of it. We can add automatic cutter on it, which can ensure you to get uniform coal/charcoal briquettes and save a lot of labor cost. The finished product—charcoal briquettes has good appearance and uniform size.
Raw material condition
1. Coal, charcoal etc.
2. The diameter size of raw material should be below 3mm
3. The humidity of raw material should be 8~15%
4. Binder is necessary
Advantages
1. Special reducer. It makes the machine work more stable
2. Low noise and stable working performance
3. Cooling system can extend the lifetime of machine and ensure the quality of finished briquettes
4. Pneumatic cutter, can save the labor cost and make the briquette length uniform.
5. For the electric cabinet, it is digital display, which makes the operation more convenient.
Specifications

Model	HSLX-160
Capacity	0.5~0.6 t/h for charcoal briquettes
	1~1.2 t/h for coal briquettes
Main Power	11kw
Cooling system power	9w
Horizontal belt conveyor power	0.75kw
Briquette diameter	6~50mm
Weight	750kg
Packing size	2.7*1.22*1.1m

Pictures Show

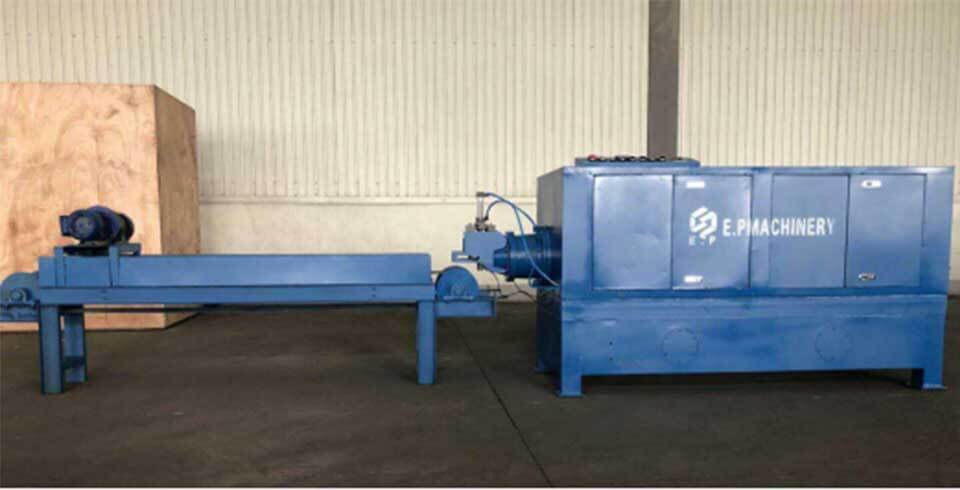

* Charcoal Briquette Extruder Machine
