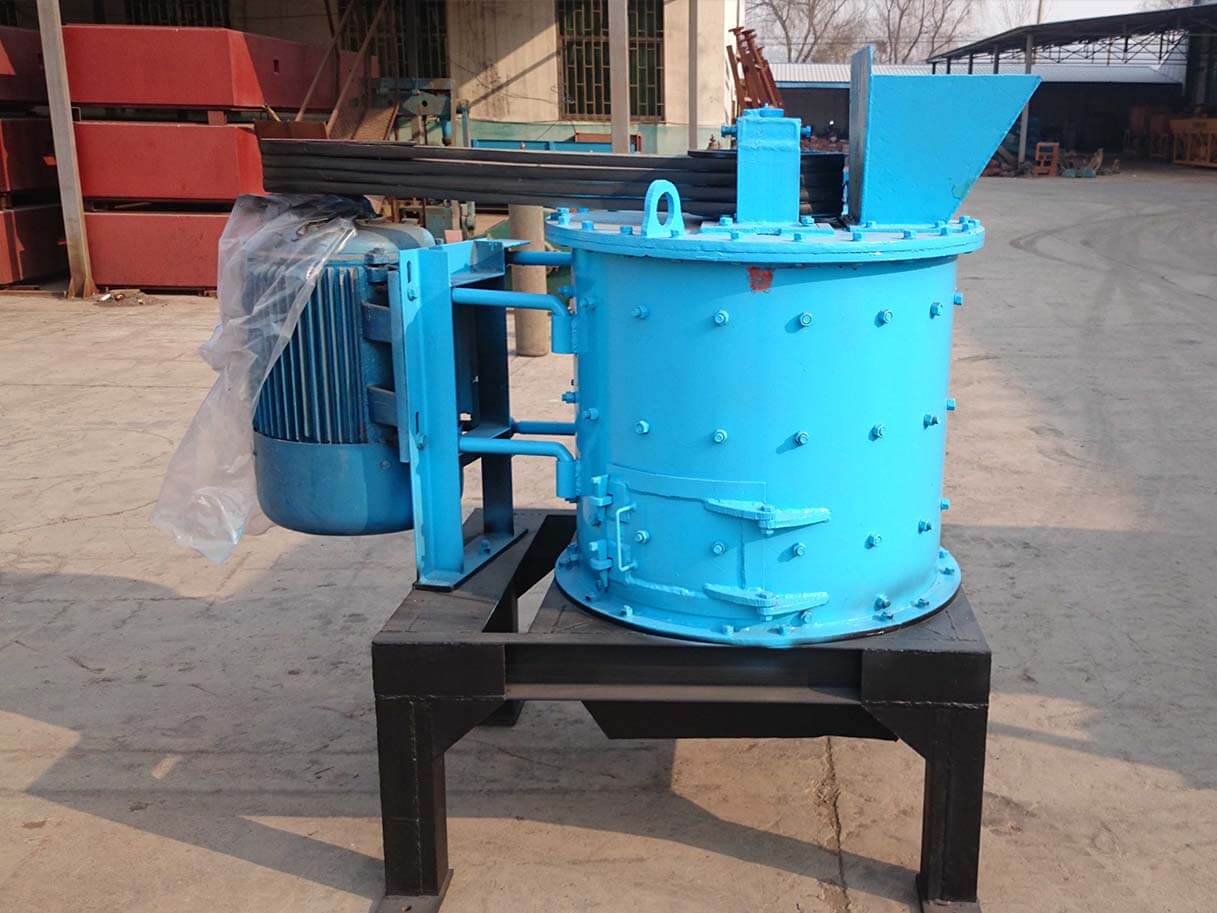

Drum crusher is suitable for crushing all kinds of medium hard ores in mine, metallurgy, refractory, cement, coal, glass, ceramics and power plant. Its main features are big crushing ratio, high output, high efficiency and energy conservancy; and the easy-wearing parts use wear-resisting materials with high hardness, high toughness and complex alloy so that its service life is improved by 2-3 times and the gap between the hammer and the impacting plate is adjustable so that it can satisfy the needs of different granularities.
Features of drum crusher
1. Its structure is simple and reasonable and operational cost is low. It uses “stone impacting stone” principle so that the abrasion is small.
2. It has high crushing ratio and is energy saving.
3. It has the functions of both fine crushing and coarse grinding.
4. The water content in the materials to be crushed has little influence on this machine and the water content can reach about 8%.
|
Model |
800 |
1000 |
1250 |
1500 |
1750 |
Rotor
diameter
(mm) |
650 |
800 |
1000 |
1250 |
1560 |
Cylinder
height(mm) |
800 |
850 |
850 |
1000 |
1410 |
Main shaft
rotation
speed
(r/min) |
1350 |
970 |
740 |
650 |
600 |
Feeding
size(mm) |
50 |
70 |
100 |
100 |
100 |
Discharging
size (mm) |
0-5 |
0-5 |
0-5 |
0-5 |
0-5 |
Processing
capacity (t/h) |
5-15 |
10-30 |
20-60 |
30-80 |
40-100 |
|
Motor |
Power(kw) |
4P 30 |
4P 55 |
6P 90 |
8P 110 |
8P 132 |
Rotation
speed |
1440 |
1440 |
750 |
750 |
750 |
Dimensions
(L×W×H)(mm) |
2200×860×1980 |
2700×1160×2000 |
2800×1400×2730 |
3100×1900×2300 |
3350×2100×2800 |
|
Total weight (t) |
2.3 |
4.5 |
9.73 |
18.1 |
26.61 |
